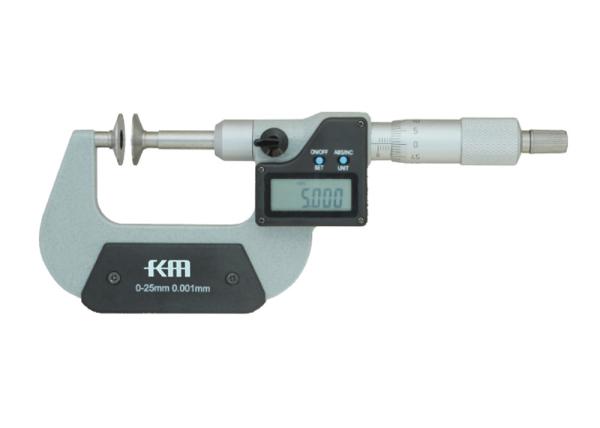

0-25mm IP65 Digital Disk Micrometer Non-rorating Spindle
Quick Detail:
1. Protection level: IP65(oil, water and dust proof).
2. LCD display for fast reading.
3. OFF/ON, SET, ABS/INC, UNIT (in/mm conversion) function keys.
4. Disk measuring faces for measuring gears and paper thickness.
5. Non-rotating spindle.
6. Ratchet thimble for precise application of force.
7. Supplied in fitted case.
Description:
Our digital disk micrometer is a specialized type of digital micrometer that are designed for measuring the gears
and paper thickness with high precision. Digital disk micrometer is designed with a unique anvil and spindle configuration
that allows for the precise measurement of disc-shaped workpiece. The anvil is shaped like a flat disc, while the spindle
is tapered to allow for easy insertion between the edges of the disc being measured.
IP65 protection degree, which provide excellent resistance against water, dust and ensures precision and reliable measuring,
even in very bad surroundings. The digital readout provides precise measurements in digital format, which can be easily
recorded and analyzed.
We supply with a full measuring range of up to 200mm or 8″, with resolution for metric 0.001mm or 0.00005″ for inch.
Specification:
Metric/Inch
| Order No. |
Measuring Range |
Resolution |
Accuracy |
| KM-2290-25 |
0-25mm/0-1″ |
0.001mm/0.00005″ |
±0.004mm |
| KM-2290-50 |
25-50mm/1-2″ |
0.001mm/0.00005″ |
±0.004mm |
| KM-2290-75 |
50-75mm/2-3″ |
0.001mm/0.00005″ |
±0.005mm |
| KM-2290-100 |
75-100mm/3-4″ |
0.001mm/0.00005″ |
±0.005mm |
| KM-2290-125 |
100-125mm/4-5″ |
0.001mm/0.00005″ |
±0.006mm |
| KM-2290-150 |
125-150mm/5-6″ |
0.001mm/0.00005″ |
±0.006mm |
| KM-2290-175 |
150-175mm/6-7″ |
0.001mm/0.00005″ |
±0.007mm |
| KM-2290-200 |
175-200mm/7-8″ |
0.001mm/0.00005″ |
±0.007mm |
Inch/Metric
| Order No. |
Measuring Range |
Resolution |
Accuracy |
| KM-2290-1 |
0-1″/0-25mm |
0.00005″/0.001mm |
±0.004mm |
| KM-2290-2 |
1-2″/25-50mm |
0.00005″/0.001mm |
±0.004mm |
| KM-2290-3 |
2-3″/50-75mm |
0.00005″/0.001mm |
±0.005mm |
| KM-2290-4 |
3-4″/75-100mm |
0.00005″/0.001mm |
±0.005mm |
| KM-2290-5 |
4-5″/100-125mm |
0.00005″/0.001mm |
±0.006mm |
| KM-2290-6 |
5-6″/125-150mm |
0.00005″/0.001mm |
±0.006mm |
| KM-2290-7 |
6-7″/150-175mm |
0.00005″/0.001mm |
±0.007mm |
| KM-2290-8 |
7-8″/175-200mm |
0.00005″/0.001mm |
±0.007mm |
Precautions:
1. Use soft cloth or cotton cleaning the micrometer.
2. Do not use any organic solvent.
3. The spindle is designed so that it cannot be removed from the inner sleeve.
4. Do not move it past the upper limit of the measuring range.
5. Remove the battery if the gauge not use for a long time.
Applications:
Digital disk micrometer is a high-precision tool for measuring the length of gears teeth. It is widely used in machinery
manufacturing, engineering maintenance, equipment testing and other fields.
FAQ:
1) Who are we?
Deko Corporation mainly dedicate to the development, manufacture and marketing of KM brand precision measuring tools
in China mainland.
2) What products do we carry?
Dial indicators, micrometers, calipers, bore gauges, height gauges, dial thickness gauges, depth gauges, bevel protractors,
gauge, blocks, level, etc.
3) What are the terms of trade?
We support FOB, CFR, CIF, EXW.
4) What are the forms of payment?
We accept T/T, L/C, D/A, D/P, PayPal, Western Union.
5) Do we accept customization?
Yes, OEM is available.
6) How about after-sales service?
One year warranty for all kinds of products.
If you find any defective accessories when receive goods, we will ship your news parts or new product to replace.
As an experienced manufacturer, we have very strict calibration and inspection team, you can rest assured of our product quality.
